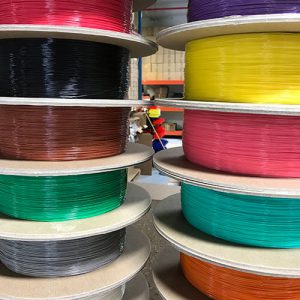

900µm Breakout Tubing
Opticonx 900µm breakout or furcation tubing for 250µm coated fibers is available in 12 different colors and translucent clear. This tubing is used for breaking out 250µm coated bare fiber into a 900µm protective tube for terminating with any industry standard connector.
All Opticonx products are made in the USA.
ORDERING INFORMATION – CLICK PART NUMBER FOR SPEC SHEET
| 900uM Breakout Tubing for 250uM Fiber | Tube (ID x OD) | Tube (ID x OD) | Tube (ID x OD) | Operating Temperature | Tube Material |
|---|---|---|---|---|---|
| Part Number | Microns | Inches | Millimeters | ||
| 722000-035XXX* | 500 x 900uM | 0.020 x 0.035" | .5 x .9mm | -40C to +85C | Hytrel |
| 712000-035XXX* | 500 x 900uM | 0.020 x 0.035" | .5 x .9mm | -40C to +85C | PVDF |
| 782000-035XXX* | 500 x 900uM | 0.020 x 0.035" | .5 x .9mm | -40C to +85C | LDPE |
AVAILABLE COLORS
| *Replace XXX with tubing color | |||
|---|---|---|---|
| Blue = BLU | Orange = ORG | Green = GRN | Brown = BRN |
| Gray - GRY | White = WHT | Red = RED | Black = BLK |
| Yellow = YEL | Violet = VIO | Pink = PNK | Aqua = AQA |
| Lime Green = LIM | Tan = TAN | Olive = OLV | Magenta = MAG |
