XBR+ High Fiber Count
Breakout Solutions

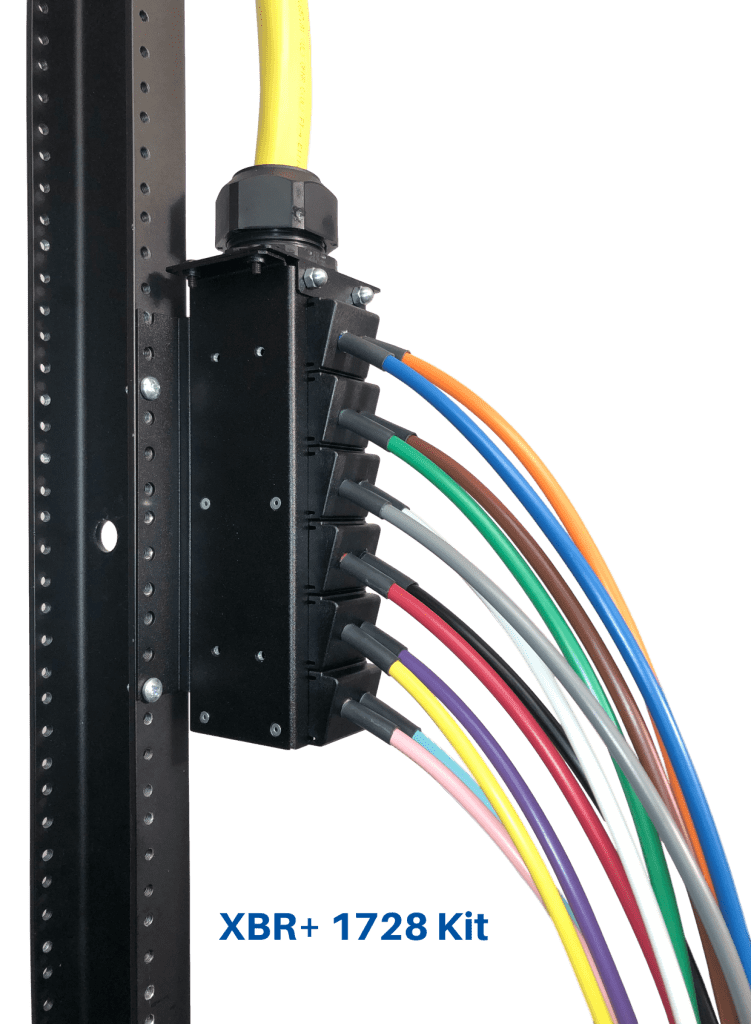

The new XBR+ Series Kit from Opticonx is designed to break out 1728 and 3456 fiber count cables into 144 fiber subgroups for routing to splice trays or for direct termination.

The kit is easy to install and includes a rack/wall mount bracket for convenience.
Use as part of a breakout solution that includes Opticonx UB Series Kits for direct termination of MTP/MPO connectors and SPK Series Kits for direct termination with single fiber connectors.

Features/Benefits:
– No special tools required
– Easily identified color coded tubing
– Fits any manufacturer’s cable
– Installs in minutes
– Protects and manages bare fiber
– Unique angled mounting bracket allows for stacking multiple units vertically
– Ability to mount outside rail so it won’t interfere with patch panels
– Works with virtually any patch panel

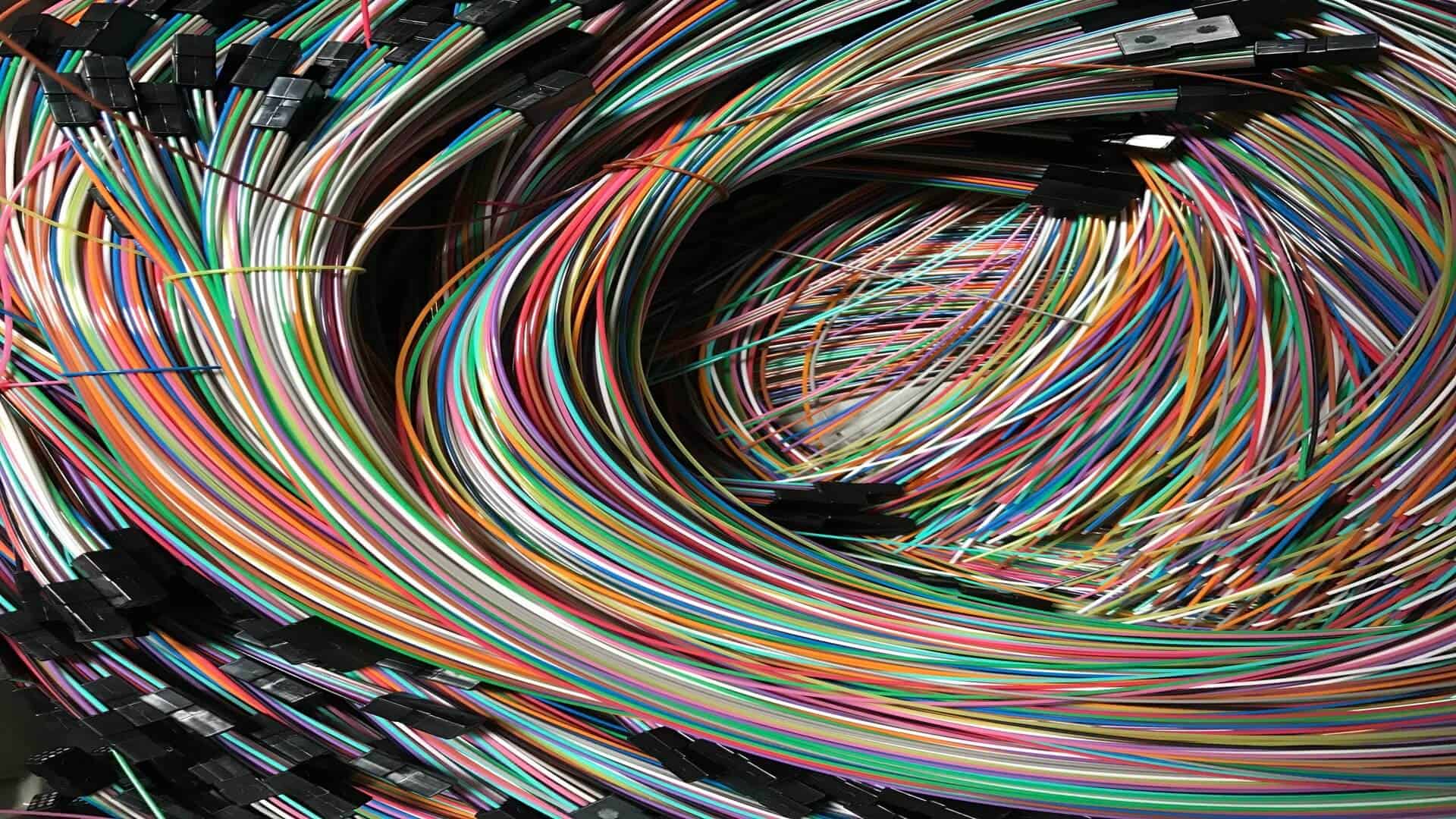

– Use with UB Series Breakout Kits and SPK Series Fanout Kits for direct termination

Kit components:

Breakout body, cable adapter, cable clamp, transition adapters with tubing and associated hardware

Standard tubing length is 2 meters
Custom tubing lengths available
Custom color coded tubing sequences available

All Opticonx products are made in the USA.

XBR+ Spec Sheet
