MTP®/MPO Solutions
In today’s data-driven world, having a fast and reliable network is more critical than ever. Traditional LC cables simply can’t keep up with the demands of ever-growing bandwidths and connections. That’s where MTP/MPO cables come in. These high-density cables are designed for 40G/100G/400G applications, making them the perfect solution for today’s data centers.
MTP® is a registered trademark of US Conec and refers to Multi-fiber Termination Push-on technology. At Opticonx, we offer different types of MTP®/MPO cables.
Types of MTP®/MPO cables
Several different types of MTP/MPO cables are available on the market, each with unique advantages. For example, OM3 MTP/MPO cables are ideal for 10 Gigabit Ethernet applications, while OM4 MTP/MPO cables are perfect for 40/100 Gigabit Ethernet applications. No matter what your needs may be, there’s an MTP/MPO cable that can meet them, such as:
Xtreme™ HIGH DENSITY PATCH PANELS
-
Introduction
Patch panels are specially designed to house Opticonx’s high-density distribution cassettes. A maximum port capacity of 144 fibers/1RU ensures these patch panels can accommodate the most complex network needs.
- Downloads
-
BASE 8
Xtreme8™ rack mount patch panels house up to 18 Xtreme8™ cassette modules for a total of 144 duplex ports in a 1 RU space. Xtreme8™panels come in two designs, a slide out tray version and static panel version.

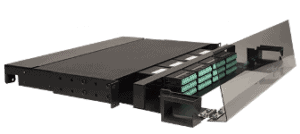

The slide out version completely houses the incoming trunk cable, modules and outgoing patch cords. The slide out shelf provides for complete access to both front and rear compartments from the front of the rack or cabinet.
All Opticonx products are made in the USA.
-
BASE 12
Xtreme12™ rack mount patch panels house up to 12 Xtreme12™ cassette modules for a total of 72 duplex ports in a 1 RU space. Xtreme12™panels come in two designs, a slide out tray version and static panel version.
The slide out version completely houses the incoming trunk cable, modules and outgoing patch cords. The slide out shelf provides for complete access to both front and rear compartments from the front of the rack or cabinet.
All Opticonx products are made in the USA.
-
LGX ADAPTER
LGX Adapter Brackets allow Xtreme+ Cassettes to be housed in any LGX compatible patch panel. They are available in single and double cassette mount versions.
All Opticonx products are made in the USA.
-
ULTRA HIGH DENSITY
Ultra-High Density patch panels from Opticonx are designed for applications where high fiber count cables (1728, 3456, and 6912 fiber) need to be terminated. Typically found in hyperscale data centers, these panels offer LC density of up to 6912 fibers in 48 rack units. Use with XBR+ fanout solutions for a total hyperscale data center termination solution.
https://opticonx.com/high-density-xtreme-xd-ready-to-splice-fiber-panel
Xtreme™ HIGH DENSITY MTP® FIBER DISTRIBUTION CASSETTES
-
Introduction
Fiber distribution cassettes transition trunk cable connectors to LC duplex pairs for easy connectivity with the network interface.
- Downloads
-
BASE 8
Xtreme8™ modules are the interface between 8 fiber MTP® trunks and duplex LC patch cables.
High density
Up to 144 fibers in a 1U patch panel
Shuttered LC Adapters
Safer operation, eliminates need for dust caps
Low insertion loss
Better link loss performance for longer distances and more interconnect points.
Bend insensitive fibers
Higher performance fiber. Standard for all cassette modules.
All Opticonx products are made in the USA.
-
BASE 12

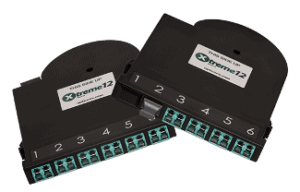

Cassette modules provide the interface between MTP® terminated trunk cables and 10GbE LC (SFP+), and/or 40GbE MTP® (QSFP+) terminated patchcords and harnesses for connecting to switches and other active devices.
Low-loss connectors and adapters, bend insensitive fiber, and internally shuttered LC adapters, are standard in all Xtreme12™ 10G Cassette Modules and MTP® Elite connections on both 10G and 40G modules.
Opticonx Xtreme12™ cassette modules are available in Method A or Universal Polarity.
All Opticonx products are made in the USA.
-
CONVERSION
Designed to easily upgrade your network utilizing existing trunk cables
Full fiber utilization
Converts Base-8, 12 and 24 backbones
Fast, easy installation
Available in Multimode OM3, OM4 and OM5 and Singlemode
All Opticonx products are made in the USA.
Xtreme™ MTP®/MPO FIBER JUMPERS
-
Introduction
Opticonx MTP Fiber Jumpers are manufactured to the highest quality the industry has to offer. Choose MTP PRO for field assignable polarity and pin configuration.
- Downloads
Xtreme™ MTP® TRUNK CABLES
-
Introduction
Opticonx’s factory-terminated MTP trunk cable is fully customizable to meet your unique needs. Choose from various fiber types, fiber counts, and polarity options. And with the opportunity for a pulling eye, installation is even faster and easier than traditional MTP/MPO cables. Rest assured that every cable undergoes rigorous quality testing to ensure reliable performance in demanding applications.
- Downloads
-
BASE 8
Xtreme8™ Trunks are factory terminated with 8 fiber MTP® connectors for interconnecting with Xtreme8 LC to MTP® modules and harnesses. Available in a variety of fiber types, fiber counts, lengths, and configurations.
-
BASE 12
Xtreme12™ Trunks are factory terminated with 12 fiber MTP® connectors for interconnecting with Xtreme12 LC to MTP® modules and harnesses. Available in a variety of fiber types, fiber counts, lengths, and configurations.
Xtreme™ MTP® FANOUT HARNESSES
-
Introduction

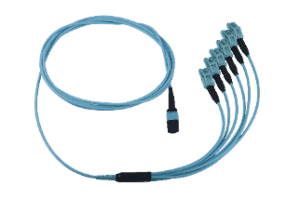

MTP® fanout harnesses connect MTP® fiber trunk cables to the network interface, with options for various fiber types, polarities, pin configurations, and lengths. Staggered breakout lengths are also available for optimized fiber management.
- Downloads
-
BASE 8
Xtreme8™ harnesses interconnect end point switches and storage devices with cabling trunks
Uniboot polarity switchable connectors
Field switchable, tool-less connector
XtremePRO™ multi fiber connectors offer the ultimate in field configurable MTP/MPO performance. Based on USCONEC’s proven MTP® PRO technology, XtremePRO™ offers quick and efficient pin and polarity re-configuration.
It’s all the performance you’ve come to expect from the MTP® connector with enhanced performance and features.
All Opticonx products are made in the USA.
https://opticonx.com/base8-xtreme8-qsfp-sfp-data-center-harnesses
-
BASE 12
Xtreme12™ harnesses interconnect end point switches and storage devices with cabling trunks
Uniboot polarity switchable connectors
Field switchable, tool-less connector
XtremePRO™ multi fiber connectors offer the ultimate in field configurable MTP/MPO performance. Based on USCONEC’s proven MTP® PRO technology, XtremePRO™ offers quick and efficient pin and polarity re-configuration.
It’s all the performance you’ve come to expect from the MTP® connector with enhanced performance and features.
All Opticonx products are made in the USA.
Xtreme™ HIGH DENSITY FIBER JUMPERS
-
Introduction
Opticonx’s line of performance MTP® and LC jumpers may be just what you need when organizing high-density network cabling. These jumpers are designed to simplify managing cables in tight spaces.
And for added convenience, the MTP® Pro jumpers even feature field-swappable polarity and pin configurations. It means they can easily be adapted to fit your specific needs without purchasing a separate jumper for each configuration.
- Downloads
-
UNIBOOT
Super Fast Lead Times
Opticonx Uniboot Polarity Switchable Patch Cords (jumpers) allow for fast and easy polarity change without the need for tools or special training.
Choose fiber type and length, and if the length you require isn’t listed, please contact an Opticonx sales representative for a custom quote. Opticonx Uniboot Polarity Switchable Patch Cords feature high density, small form factor LC connectors mated to 2.0mm round duplex cable. These jumpers are used to connect switches or network devices in fiber networks directly or interconnect structured cabling systems in a fiber network. Polarity changes can be made in the field quickly, without the use of tools, to the correct fiber mapping polarity.
All Opticonx products are made in the USA.
https://opticonx.com/base8-xtreme8-uniboot-lc-duplex-patchcords
-
BASE 8 MTP
XtremePRO™ multi fiber connectors offer the ultimate in field configurable MTP/MPO performance. Based on USCONEC’s proven MTP® PRO technology, XtremePRO™ offers quick and efficient pin and polarity re-configuration.
It’s all the performance you’ve come to expect from the MTP® connector with enhanced performance and features.
Xtreme8™ Jumpers are factory terminated with 8 fiber MTP® PRO connectors for interconnecting with Xtreme8™ LC to MTP® PRO modules and harnesses.
All Opticonx products are made in the USA.
-
BASE 12 MTP
XtremePRO™ multi fiber connectors offer the ultimate in field configurable MTP/MPO performance. Based on USCONEC’s proven MTP® PRO technology, XtremePRO™ offers quick and efficient pin and polarity re-configuration.
It’s all the performance you’ve come to expect from the MTP® connector with enhanced performance and features.
Xtreme12™ Jumpers are factory terminated with 12 fiber MTP® PRO connectors for interconnecting with Xtreme12™ LC to MTP® PRO modules and harnesses.
All Opticonx products are made in the USA.
Benefits of using MTP®/MPO Cables
MTP/MPO fiber cable is designed with MTP connectors on each end, allowing for easy, efficient connectivity between multiple fibers in a single cable. These connectors also feature minimum loss, boasting performance up to 3 dB lower than traditional connectors.
MTP cables have several benefits over traditional fiber optic cables, including reduced labor and installation time due to their push-on design and higher density and improved airflow in high-density installations.
Overall, MTP cable technology offers significant benefits for fiber optic networking.
Engineered for dependable high-speed data transmission
If you’re looking for a reliable, high-performance cable solution for your data center, look no further than MTP/MPO cable from Opticonx. These versatile and durable cables are sure to give you the speed and reliability you need to stay ahead of the competition.
