Xtreme™ Fiber Optic Cable Assemblies
Opticonx, Inc. manufactures a full line of singlemode and multi mode simplex, duplex, and multifiber cable assemblies. Assemblies feature bend insensitive OS2 singlemode and OM1, OM2, OM3, OM4 and OM5 multi mode fiber. All standard connector types are available, including: ST, SC, LC, FC, MTRJ in both UPC and APC versions. Custom lengths, fiber types, jacket colors, connector types, breakouts and labeling are available.
Opticonx manufactures our Xtreme™ cable assemblies in the U.S.A., using only top-quality components, equipment, and processes resulting in products that meet or exceed even the most demanding specifications. Our standard 15-year limited warranty ensures years of worry- free service.
Fiber optic cables assemblies from Opticonx
With Opticonx, you can choose the right fiber optic assemblies for various applications.
Xtreme™ FIBER OPTIC PIGTAILS
-
Introduction

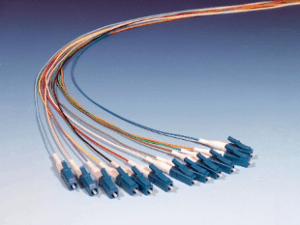

Fiber Optic Pigtails
As part of our line of single-mode simplex and duplex pigtails, we offer jacketed and 900-micron configurations ready for fusion splice applications. Pigtails are available in standard fiber or bend-insensitive fiber. Custom lengths, fiber types, jacket colors, and connector types are available. Our standard 15-year limited warranty guarantees that our fiber optic cable assemblies will meet or exceed the most demanding specifications.
- Downloads
Xtreme™ FIBER OPTIC PATCH CORDS
-
Introduction

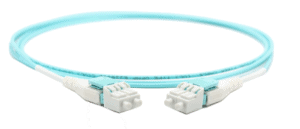

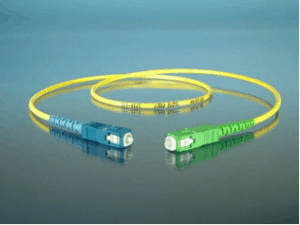

Fiber Optic Jumpers and Patch Cords
Our fiber optic patch cables meet the strictest industry standards. All industry-standard fiber types are available, and we specialize in custom configurations. These patch cords are made with Opticonx fiber cable, typically with a 2mm or 3mm cable jacket. They are available in simplex or duplex configurations.
- Downloads
Xtreme™ UNIBOOT FIBER OPTIC PATCH CORDS
-
Introduction
In high-density applications where polarity reconfiguration may be required, Uniboot Polarity Swappable Patch Cables provide an easy, tool-free method of swapping polarities without any prior training.
-
Features
- True Uniboot (one boot) design
- Easily switch polarity (A/B, A/A) without tools or damage to fiber
- 2.0 mini round cable design
- Flexible plenum rated jacket for all plenum and riser applications
- Bend insensitive fiber on all Multimode fibers, optional for Singlemode fibers
- Fiber options: OM3, OM4, and OS2
- 100% optical testing and reporting
- Xtreme Low Loss (XL) and Low Loss (LL) performance options
- Custom lengths, jacket colors and labeling options
- Downloads
-
Video
Xtreme™ MTP® / MPO FIBER JUMPERS
-
Introduction
Choose the MTP PRO fiber jumpers if you want field-assignable pin and polarity configurations on your bundle. MTP PRO fiber jumpers from Opticonx are manufactured to the highest standards.
- Downloads
Xtreme™ MTP® TRUNK CABLES
-
Introduction
Factory-terminated trunk cables from Opticonx can be customized in terms of length, fiber type, fiber count, polarity, and pin arrangement. Although MTPs are already quick and easy to install, an optional pulling eye is available for a much easier installation. Each variety is subjected to rigorous quality testing to ensure optimal performance in demanding environments.
- Downloads
-
Base 8
Xtreme8™ Trunks are factory terminated with 8 fiber MTP® connectors for interconnecting with Xtreme8 LC to MTP modules and harnesses. Available in a variety of fiber types, fiber counts, lengths, and configurations.
-
Base 12
Xtreme12™ Trunks are factory terminated with 12 fiber MTP® connectors for interconnecting with Xtreme12 LC to MTP modules and harnesses. Available in a variety of fiber types, fiber counts, lengths, and configurations.
Xtreme™ MTP® FANOUT HARNESSES
-
Introduction
A fanout harness for MTP fiber trunk cables connects the fiber trunk cables to the network interface. These fiber fanout harnesses offer various options for fiber types, polarities, pin configurations, and lengths. They can also be configured with staggered breakout lengths for optimal fiber management.
- Downloads
-
Base 8
Xtreme8™ harnesses interconnect end point switches and storage devices with cabling trunks
Uniboot polarity switchable connectors
Field switchable, tool-less connector
XtremePRO™ multi fiber connectors offer the ultimate in field configurable MTP/MPO performance. Based on USCONEC’s proven MTP PRO technology, XtremePRO™ offers quick and efficient pin and polarity re-configuration.
It’s all the performance you’ve come to expect from the MTP connector with enhanced performance and features.
All Opticonx products are made in the USA.
https://opticonx.com/base8-xtreme8-qsfp-sfp-data-center-harnesses
-
Base 12
Xtreme12™ harnesses interconnect end point switches and storage devices with cabling trunks
Uniboot polarity switchable connectors
Field switchable, tool-less connector
XtremePRO™ multi fiber connectors offer the ultimate in field configurable MTP/MPO performance. Based on USCONEC’s proven MTP PRO technology, XtremePRO™ offers quick and efficient pin and polarity re-configuration.
It’s all the performance you’ve come to expect from the MTP connector with enhanced performance and features.
All Opticonx products are made in the USA.
Xtreme™ HIGH DENSITY FIBER JUMPERS
-
Introduction
MTP Pro jumpers feature field-swappable polarity and pin configurations for maximum flexibility and allow for quickly modifying the configuration of cables in high-density environments. MTP Pro jumpers are made from high-grade, high-precision components with field-swappable polarity and pin configurations.
- Downloads
-
Uniboot
Super Fast Lead Times
Opticonx Uniboot Polarity Switchable Patch Cords (jumpers) allow for fast and easy polarity change without the need for tools or special training.
Choose fiber type and length, and if the length you require isn’t listed, please contact an Opticonx sales representative for a custom quote. Opticonx Uniboot Polarity Switchable Patch Cords feature high density, small form factor LC connectors mated to 2.0mm round duplex cable. These jumpers are used to connect switches or network devices in fiber networks directly or interconnect structured cabling systems in a fiber network. Polarity changes can be made in the field quickly, without the use of tools, to the correct fiber mapping polarity.
All Opticonx products are made in the USA.
https://opticonx.com/base8-xtreme8-uniboot-lc-duplex-patchcords
-
Base 8 MTP
XtremePRO™ multi fiber connectors offer the ultimate in field configurable MTP/MPO performance. Based on USCONEC’s proven MTP PRO technology, XtremePRO™ offers quick and efficient pin and polarity re-configuration.
It’s all the performance you’ve come to expect from the MTP connector with enhanced performance and features.
Xtreme8™ Jumpers are factory terminated with 8 fiber MTP PRO connectors for interconnecting with Xtreme8™ LC to MTP PRO modules and harnesses.
All Opticonx products are made in the USA.
-
Base 12 MTP
XtremePRO™ multi fiber connectors offer the ultimate in field configurable MTP/MPO performance. Based on USCONEC’s proven MTP PRO technology, XtremePRO™ offers quick and efficient pin and polarity re-configuration.
It’s all the performance you’ve come to expect from the MTP connector with enhanced performance and features.
Xtreme12™ Jumpers are factory terminated with 12 fiber MTP PRO connectors for interconnecting with Xtreme12™ LC to MTP PRO modules and harnesses.
All Opticonx products are made in the USA.
