2mm and 3mm Round Duplex Breakout Tubing

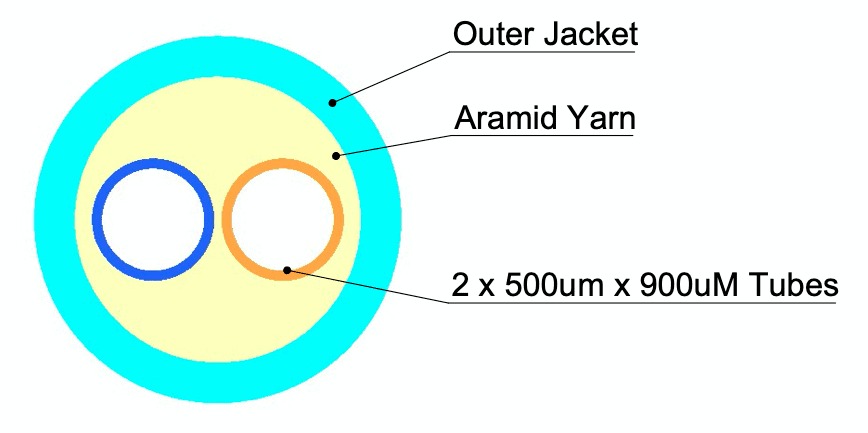

Quick and easy direct termination with Uniboot LC connectors: Opticonx 2mm and 3mm tubing is designed specifically to allow two 250uM buffered fibers to be quickly and easily inserted into a single tube via two 500uM x 900uM inner tubes. Made in the USA. Available in all 12 colors and works with ANY manufacturer’s cable or connectors.
All Opticonx products are made in the USA.
ORDERING INFORMATION – CLICK PART NUMBER FOR SPEC SHEET
| 2mm Round Duplex Breakout Tubing | Tube ID | Tube OD | Jacket OD | Operating Temperature | Tube Material | Jacket Material | Application |
|---|---|---|---|---|---|---|---|
| Part Number | Microns | Microns | Millimeters | Celsius | |||
| 703DUP-XXX* | 400 | 600 | 2.0 | -18C to +70C | Hytrel | PVC | Uniboot Terminations |
| 3mm Round Duplex Breakout Tubing | Tube ID | Tube OD | Jacket OD | Operating Temperature | Tube Material | Jacket Material | Application |
|---|---|---|---|---|---|---|---|
| Part Number | Microns | Microns | Millimeters | Celsius | |||
| 707DUP-XXX* | 500 | 900 | 3.0 | -20C to +75C | Hytrel | PVC | Uniboot Terminations |
AVAILABLE COLORS
| *Replace XXX with tubing color | |||
|---|---|---|---|
| Blue = BLU | Orange = ORG | Green = GRN | Brown = BRN |
| Gray - GRY | White = WHT | Red = RED | Black = BLK |
| Yellow = YEL | Violet = VIO | Pink = PNK | Aqua = AQA |
| Lime Green = LIM | Tan = TAN | Olive = OLV | Magenta = MAG |
