SPK Series Splitter Kits

Splitter Kit
  • Introduction

    Opticonx SPK Series Splitter Kits are designed to quickly and easily breakout loose tube stranded & micro distribution, loose tube unitube/central tube and ribbon cables containing 250μM fiber for direct termination with industry standard connectors. Three different splitter kits are available.

    Applications:
    Field termination of multi fiber per tube,loose tube stranded & micro distribution cables, loose tube unitube/central tube plus ribbon fiber cables

    Features/Benefits:
    – No special tools required – Color coded tubing – Fits virtually any cable design – Installs in minutes – Works with all 900μM booted connectors

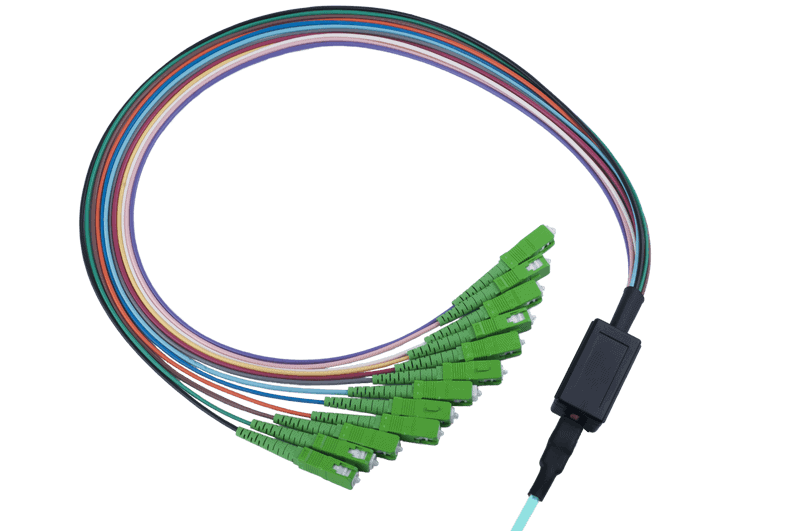

    Simple and easy to use, SPK Series Splitter Kits route individual 250μM fibers into individual 900μM, Hytrel, color coded buffer tubes via a compact protective housing. The fiber can then be directly terminated, using industry standard connectors with 900μM boot. The fan out kits are designed to work with any manufacturer’s cable.

    All Opticonx products are made in the USA.

  • Downloads

    Splitter Kit Flyer

  • SPKL Series

    72 Fiber Image Small PNG 369 Width

    SPKL Series for Stranded Core Loose Tube Cables

    The SPKL Series terminates multi fiber per tube, loose tube stranded & micro distribution cables in 4, 6, 8 or 12 fibers per tube.

    DESCRIPTION PART NUMBER
    4 fiber per tube, 24 inch breakout length SPKL-04
    6 fiber per tube, 24 inch breakout length SPKL-06
    8 fiber per tube, 24 inch breakout length SPKL-08
    12 fiber per tube, 24 inch breakout length SPKL-12
  • SPKU Series

    IO 12 Fiber Small PNG 370 Width

    SPKU Series for Unitube or Central Tube Cables

    The SPKU Series terminates multi fiber loose tube, unitube or central tube cables from 4 to 36 fibers.

    DESCRIPTION PART NUMBER
    4 fiber unitube, 36 inch breakout length SPKU-04
    6 fiber unitube, 36 inch breakout length SPKU-06
    8 fiber unitube, 36 inch breakout length SPKU-08
    12 fiber unitube, 36 inch breakout length SPKU-12
    24 fiber unitube, 36 inch breakout length SPKU-24
    36 fiber unitube, 36 inch breakout length SPKU-36
  • SPKR Series

    Ribbon

    SPKR Series for Unitube or Central Tube Cables

    The SPKR Series terminates single ribbon cables and “bare” ribbons in 4, 6, 8 or 12 ribbon form, up to 288 fibers.

    DESCRIPTION PART NUMBER
    4-288 Fiber Ribbon, 36″ breakout length SPKR-*XXX

    * Replace XXX with fiber count
