Xtreme12 MTP PRO 10/100G Harnesses
Xtreme12™ harnesses interconnect end point switches and storage devices with cabling trunks
Uniboot polarity switchable connectors
Field switchable, tool-less connector

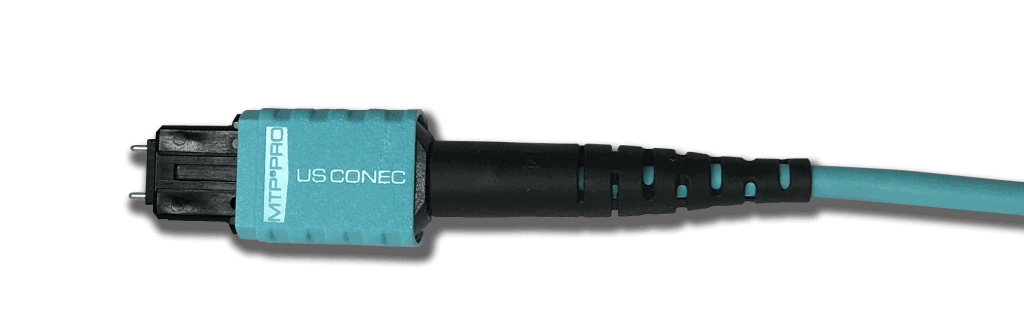

XtremePRO™ multi fiber connectors offer the ultimate in field configurable MTP/MPO performance. Based on USCONEC’s proven MTP PRO technology, XtremePRO™ offers quick and efficient pin and polarity re-configuration.
It’s all the performance you’ve come to expect from the MTP connector with enhanced performance and features.
All Opticonx products are made in the USA.
| Fiber Count | 12 |
| SFP+ Connector | Duplex LC Uniboot |
| SFP+ Connector Color | Aqua (OM3/OM4), Green (OM5), Green (OS2) |
| QSFP Connector | Aqua (OM3), Magenta (OM4), Green (OM5/OS2) |
| Polarity | Method A |
| Loss Type | Maximum Harness Insertion Loss |
| Low Loss (LL) | 0.50dB ()M3/OM4/OM5), 1.0dB (OS2) |
| Xtreme Low Loss (XL) | o.35dB (OM3/OM4/OM5), 0.60dB (OS2) |
XtremePRO MTP Pro

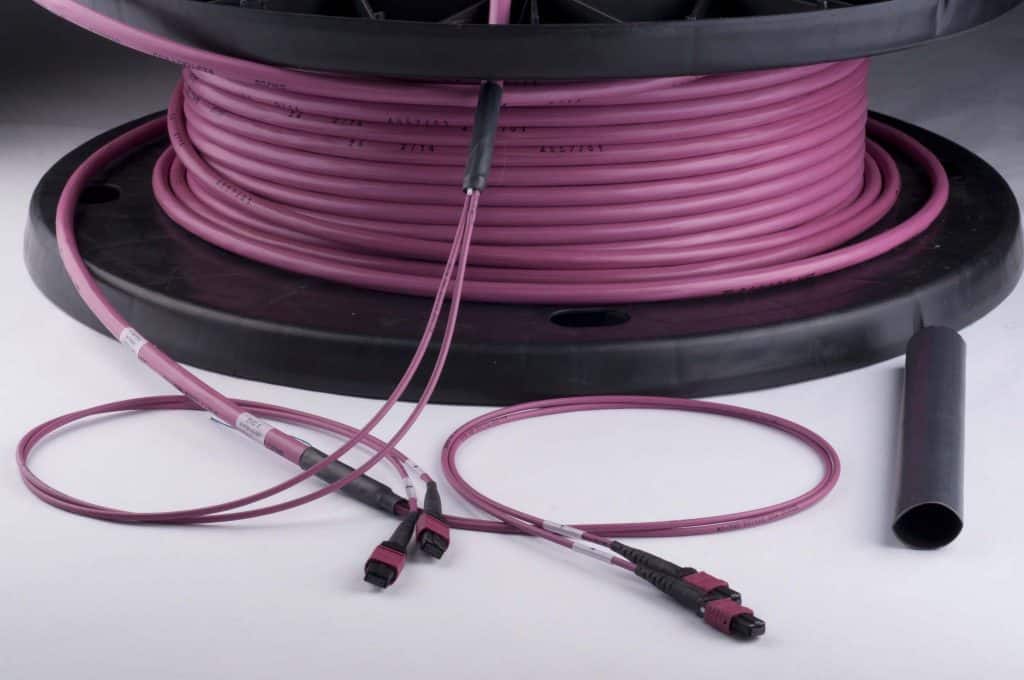

MTP Magenta Trunk
MTP ORDERING INFORMATION
| X12HN | CB | L | 07 | F | A | 6 | 2 | 3 |
|---|---|---|---|---|---|---|---|---|
| Select fiber type | Select performance | Length | F = Feet | Pinout | Gender | Stagger | Overall Breakout Length | |
| CB = OM3 | L = Low Loss | M = Meters | A | 6 = Male | 0 = None | 1 = 12 | ||
| DB = OM4 | X = Xtreme Low Loss | U | 9 = Female | 1 = Stagger Low to High | 2 = 18 | |||
| HB = OM5 | 2 = Stagger High to Low | 3 = 24 | ||||||
| BA = OS2 | 4 = 36 | |||||||
| 5 = 48 | ||||||||
MTP PRO ORDERING INFORMATION
| XHP | XX | X | XX | X | X | X | X | X |
|---|---|---|---|---|---|---|---|---|
| Select fiber type | Performance | Length | F = Feet | Pinout | Starting Gender | Stagger | Overall Breakout Length (in) | |
| CB = OM3 | X = Xtreme Low Loss | M = Meters | A | 6 = Male | 0 = None | 1 = 12 | ||
| DB = OM4 | U | 9 = Female | 1 = Stagger Low to High | 2 = 18 | ||||
| HB = OM5 | 2 = Stagger High to Low | 3 = 24 | ||||||
| BA = OS2 | 4 = 36 | |||||||
| 5 = 48 | ||||||||
