3.0mm Breakout Tubing

3.0mm Tubing
  • Introduction

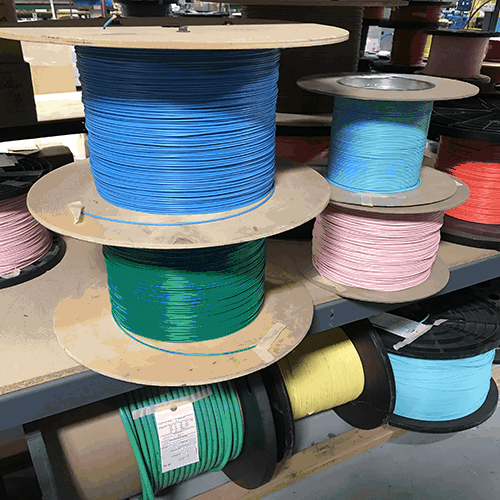

    Opticonx 3.0mm breakout tubing for 250 or 900µm buffered fibers are available in 12 different colors. This tubing is used for breaking out 250 or 900µm buffered fiber to 3.0mm tubing for terminating with any industry standard connector. The tubing is constructed with an inner tube for the inserted fiber, a layer of aramid yarn for strain relief and connector crimping, and an overall color coded jacket of PVC or LSZH. 3.0mm tubing is available in simplex and duplex constructions.

    All Opticonx products are made in the USA.

  • Downloads

    3.0mm Tubing Flyer and Spec Sheet

ORDERING INFORMATION – CLICK PART NUMBER FOR SPEC SHEET

250um to 3.0mm Simplex Tube ID Tube OD Jacket OD Operating Temperature Tube Material Jacket Material
Part Numbers Microns Microns Millimeters Celsius
707000-035XXX* 500 900 3.0 -20C to +75C Hytrel PVC
737000-035XXX* 500 900 3.0 -20C to +75C Hytrel LSZH
717000-035XXX* 500 900 3.0 -40C to +85C PVDF PVDF
250um to 3.0mm Duplex Tube ID Tube OD Jacket OD Operating Temperature Tube Material Jacket Material
Part Numbers Microns Microns Millimeters Celsius
7070ZP-XXX* 500 900 3.0 -20C to +75C Hytrel PVC
7370ZP-XXX* 500 900 3.0 -20C to +75C Hytrel LSZH
900um to 3.0mm Simplex Tube ID Tube OD Jacket OD Operating Temperature Tube Material Jacket Material
Part Numbers Millimeters Millimeters Millimeters Celsius
707000-1.5XXX* 1.10 1.50 3.0 -20C to +75C Hytrel PVC
737000-1.5XXX* 1.10 1.50 3.0 -20C to +75C Hytrel LSZH

AVAILABLE COLORS

*Replace XXX with tubing color
Blue = BLU Orange = ORG Green = GRN Brown = BRN
Gray - GRY White = WHT Red = RED Black = BLK
Yellow = YEL Violet = VIO Pink = PNK Aqua = AQA
Lime Green = LIM Tan = TAN Olive = OLV Magenta = MAG
