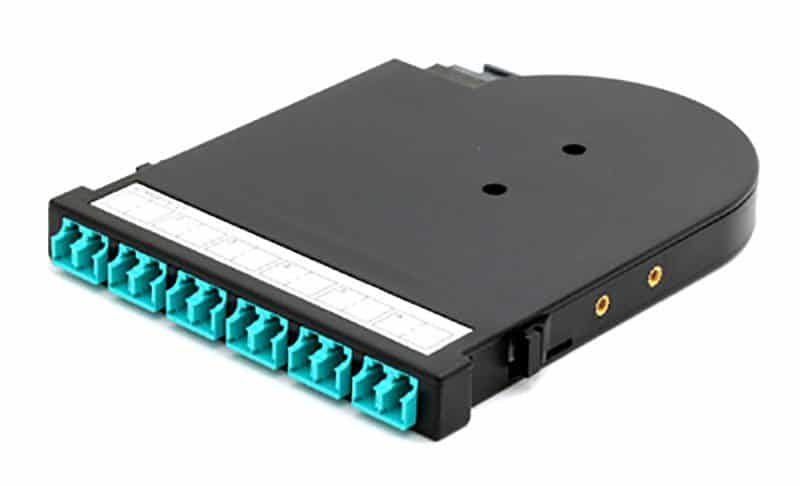

Xtreme12 10G and 40G Cassette

Cassette modules provide the interface between MTP® terminated trunk cables and 10GbE LC (SFP+), and/or 40GbE MTP (QSFP+) terminated patchcords and harnesses for connecting to switches and other active devices.
Low-loss connectors and adapters, bend insensitive fiber, and internally shuttered LC adapters, are standard in all Xtreme12™ 10G Cassette Modules and MTP Elite connections on both 10G and 40G modules.
Opticonx Xtreme12™ cassette modules are available in Method A or Universal Polarity.
All Opticonx products are made in the USA.
All dimensions are on the spec sheet:
Click here to download the Xtreme 12 Fiber LC Cassette Spec Sheet
Fiber Count/Port Count | 12/6 |
Front Adapter Type | Shuttered LC |
Front Adapter Color | Aqua (OM3, OM4), Magenta (OM4), Blue (OS2), Green (OS2 APC) |
Rear Adapter Type | MTP (pinned) |
Rear Adapter Color | Aqua (OM3, OM4), Green (OS2) |
Polarity | Method A (Straight Through) |
Loss Type | Maximum Module Insertion Loss |
Low Loss (LL) | 0.50dB ()M3/OM4), 1.00dB (OS2) |
Xtreme Low Loss (XL) | o.35dB (OM3/OM4), 0.60dB (OS2) |
PART NUMBERS | |
---|---|
DESCRIPTION | PART NUMBER |
12F, OM3 Bend Insensitive, Low Loss, Aqua | P3XCCB14LL* |
12F, OM3 Bend Insensitive, Low Loss, Aqua - 8 LC and Front MTP (40G) | P3XCCB14LLF-F* |
12F, OM3 Bend Insensitive, Xtreme Low Loss, Aqua | P3XCCB14XL* |
12F, OM4 Bend Insensitive, Low Loss, Aqua | P3XCDB14LL* |
12F, OM4 Bend Insensitive, Xtreme Low Loss, Aqua | P3XCDB14XL* |
12F, OM4 Bend Insensitive, Low Loss, Magenta | P3XCFB14LL* |
12F, OM4 Bend Insensitive, Xtreme Low Loss, Magenta | P3XCFB14XL* |
12F, OS2 Bend Insensitive, Low Loss, Blue | P3XCBA15LL* |
12F, OS2 Bend Insensitive, Xtreme Low Loss, Blue | P3XCBA15XL* |
12F, OS2 Bend Insensitive, Low Loss, Green APC | P3XCBA31LL* |
12F, OM4 Bend Insensitive, Xtreme Low Loss, Green APC | P3XCBA31XL* |
* Use A for Method A Straight Through Polarity or U for Universal Polarity |
